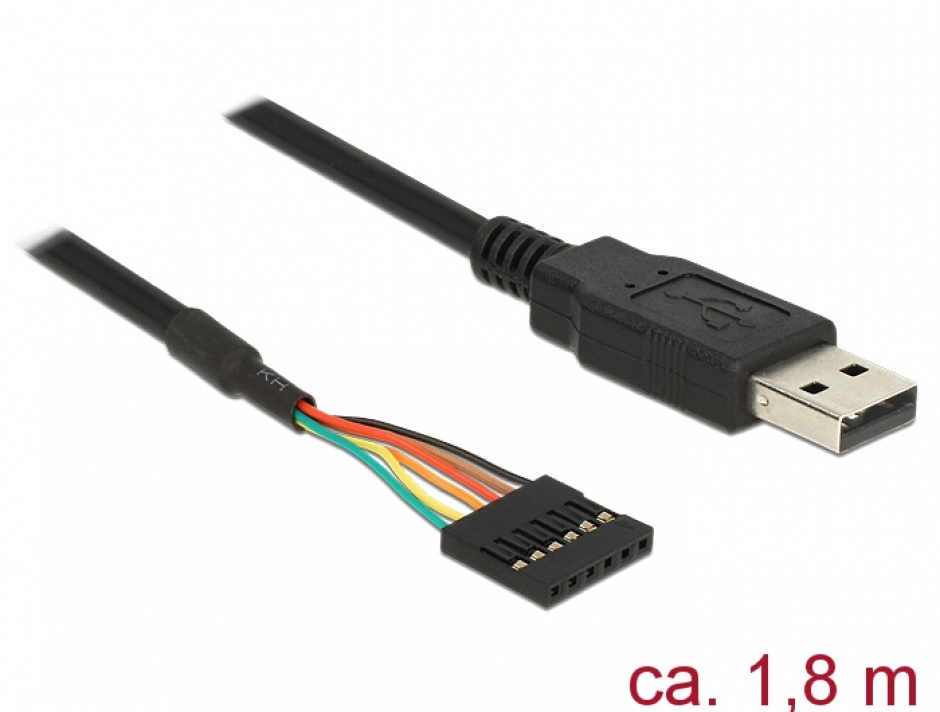

Acest convertor USB TTL se pliaza unei game largi de temperaturi, potrivita pentru aplicatii industriale.
Acesta suporta porturile virtuale COM si permite accesul direct la interfata. Convertorul este compatibil multifunctional cu sistemele standard Windows, Linux si MAC. Este potrivit pentru sisteme incorporate, sisteme de control, Gateway Programmable Gate Array, MCU, dongle etc.

Pin assignment:
  1. GND
  2. CTS
  3. VCC
  4. TXD
  5. RXD
  6. RTS
• Chipset: FTDI 232RL
• Cable gauge: 26 AWG
• Temperature range: -20°C to +80°C
• No-load current: 70 uA
• Converter: 5 V / 15 mA (VCC, GND)
• Compatible to UHCI / OHCI / EHCI controller
• VTTL 5 V (data) / 4 mA or HighLevel 12 mA
• Data rate 300 baud - 3 Megabaud
• Databit: 7 or 8
• Stoppbits: 1 or 2
• Parity: Parity: none, space, even, odd, mark
• Flow control: software XON / XOFF or hardware RTS / CTS
• FIFO: 128 Byte – RX
             256 Byte – TX
